System Resources

Host CPU: 200MHz 32Bits RISC

Security processor: 200MHz 32Bits

Audio processor: 200MHz 32Bits

RAM memory: DDRII 16bit 512Mbits

Flash memory: NOR Flash 32Mbits

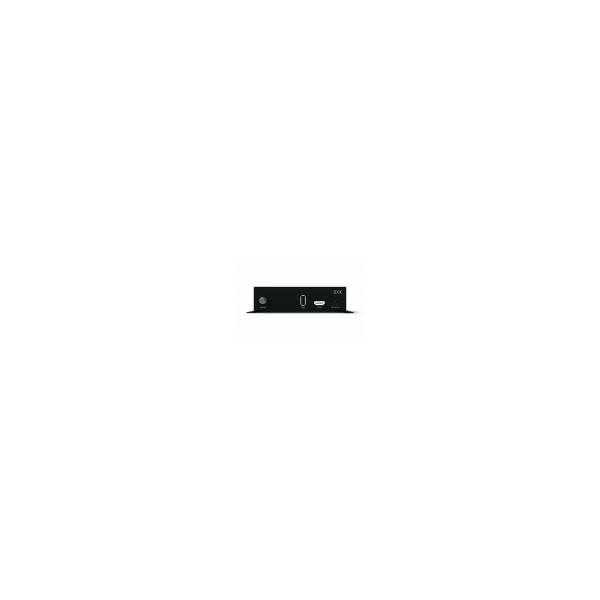

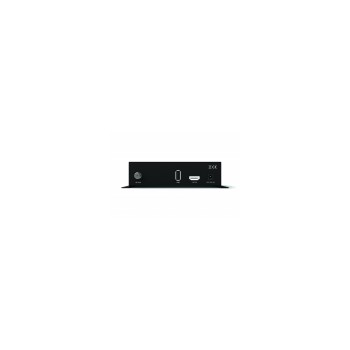

Input & Output connections:

HDMI: Type A, ver 1.4a

USB: High Speed USB 2.0 connection

RF Output: F Type

Encoder:

Video encoder: ISO/IEC 11172-2 MPEG1

ISO/IEC 13818-2 MPEG2 MP@HL

ISO/IEC 14496 MPEG4

Compliant Support SP@L3 to ASP@L5

ISO/IEC 14496-10 AVC, HP@level4.1, MP@level4.1

H.264 profile 0

JPEG base-line, progressive

Aspect ratio: 16:9, 4:3 Letter Box, 4:3 Pan Scan

Resolution: up to 1080i

Audio encoder: MPEGI layer1/2, MPEGII Layer II

AAC LC, HE-AAC v1/v2 (2-CH)

Modulation:

Output frequency range: 174-233MHz (VHF)

470-858MHz (UHF)

Output impedance: 50Ω

Forward Error Correction (FEC): 1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval: 1/4, 1/8, 1/16, 1/32

Constellations: QPSK, 16QAM, 64QAM

RF output level Default: 90dBuV

Adjustable: 0 to -14dB, 0 to +6dB

Bandwidth: 7MHz (VHF), 8MHz (UHF)

FFT: 2K, 8K

Symbol rate range: Up to 31.668 Mbps

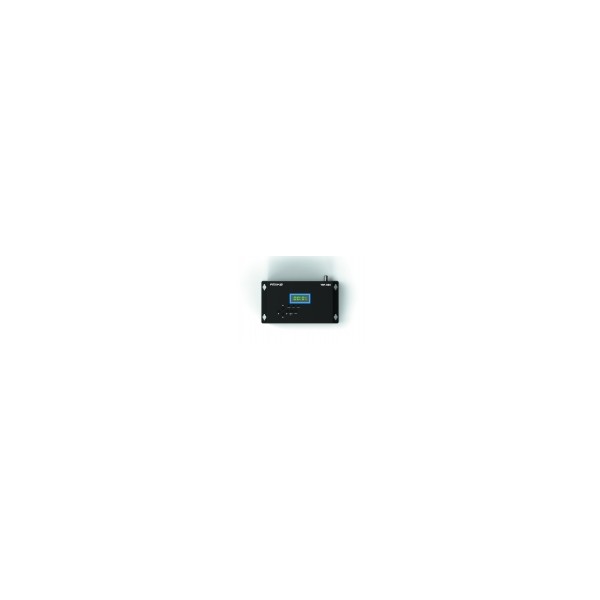

Front Panel:

Display: 4 Digit LED display

LED: Power, Lock, Signal indicators

Buttons: 6 buttons

Power Supply

Input voltage: 100~240V AC

Output voltage: 12V DC

Power consumption: ~10W

Physical Specifications:

Dimensions: 147mm x 104mm x 29mm (WxDxH)

Material: Metal cabinet
